BRAKE CHAMBER 3036 GC3036

Description

Part Number: GC3036

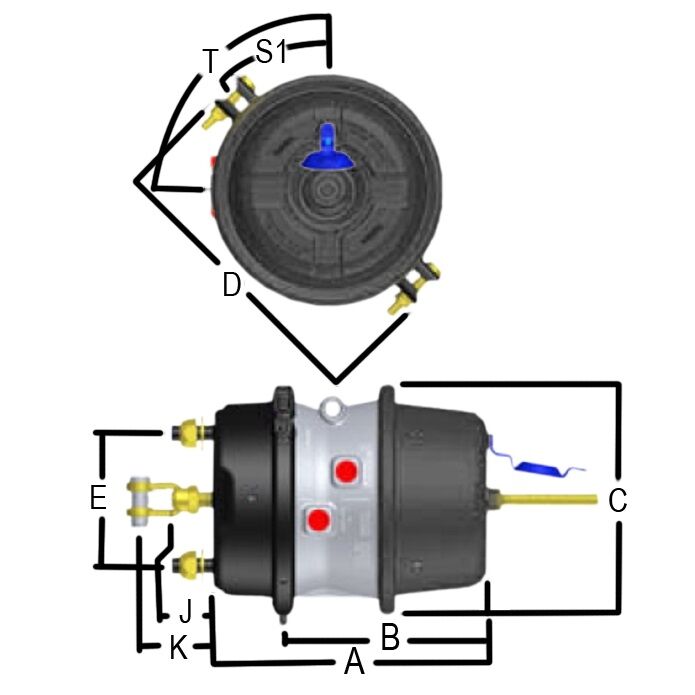

Gold Seal Spring Brake – Replaces 3036001, 53036001 and MA15452 GC3036 Combination – Size 3036 Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F Rugged Service Housing; 9 gauge steel, powder coated Orange Alert® Stroke Indicator Self-piloting Dust Shield Sizes to fit all drum brake applications Notes 1.A = Length from mounting bracket to end of Spring Housing 2.B = Length of Piggyback 3.C = Dimension at rolled Spring Housing flange 4.D = Dimension at Service Clampband 5.E = Stud Spacing 4.75 in. (120.7mm) 6.J = Pushrod Length from face of Service Housing 7.K = Distance to Clevis Pin centerline from face of Service Housing 8.S1 = Service Clampband position (0°) 9.T = Air Port position (90°) 10.Stud Type: 5/8-11 UNC Grade 5Stud Length: 1.50 in. (38.1mm)Pushrod Thread: 5/8-18 UNFAir Port Threads: 3/8-18 NPTFMaximum Air Pressure: 150 psi Avail. Stroke 2.50″ 64mm A 9.8″ 250mm B 7.3″ 185mm C 9.1″ 231mm D 10.2″ 259mm J 10.00″ K – Wt. (each) 24.7 lbs. 11.2 kg. Qty. 1
