Description

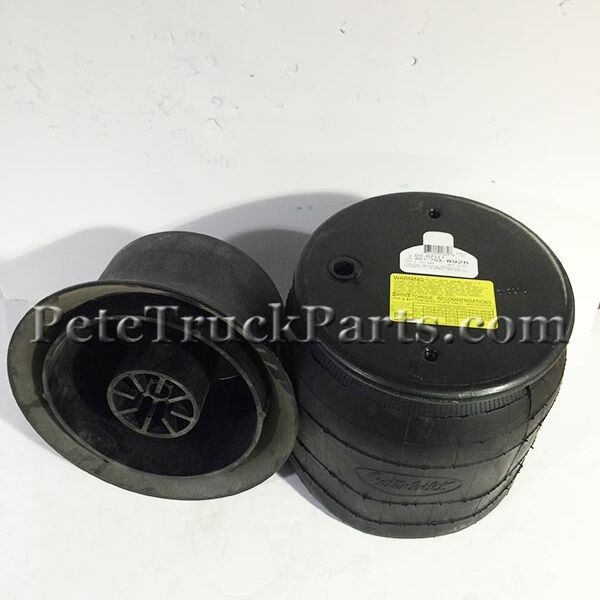

Part Number: 03-07111
Order Number: W01-358-9026 Bellows #: 1T15M-6 Assembly Weight: 12.7 lbs Design Height: 12-14.5 inches Minimum Jounce Height: 6.7 inches Maximum Rebound Height: 20.3 inches Loading Capacity at 20 psig: 1,420 lbsf Loading Capacity at 60 psig: 4,260 lbsf Loading Capacity at 90 psig: 6,390 lbsf Natural Frequency: Hz Maximum Diameter: 12.7 inches Material Type: Natural Rubber º C 4 5 – o t º C 7 5 : e r u t a r e p m e T g n i t a r e p ORemarks: FRP PISTON PLASTIC LIGHT WEIGHT TR: C-2987
